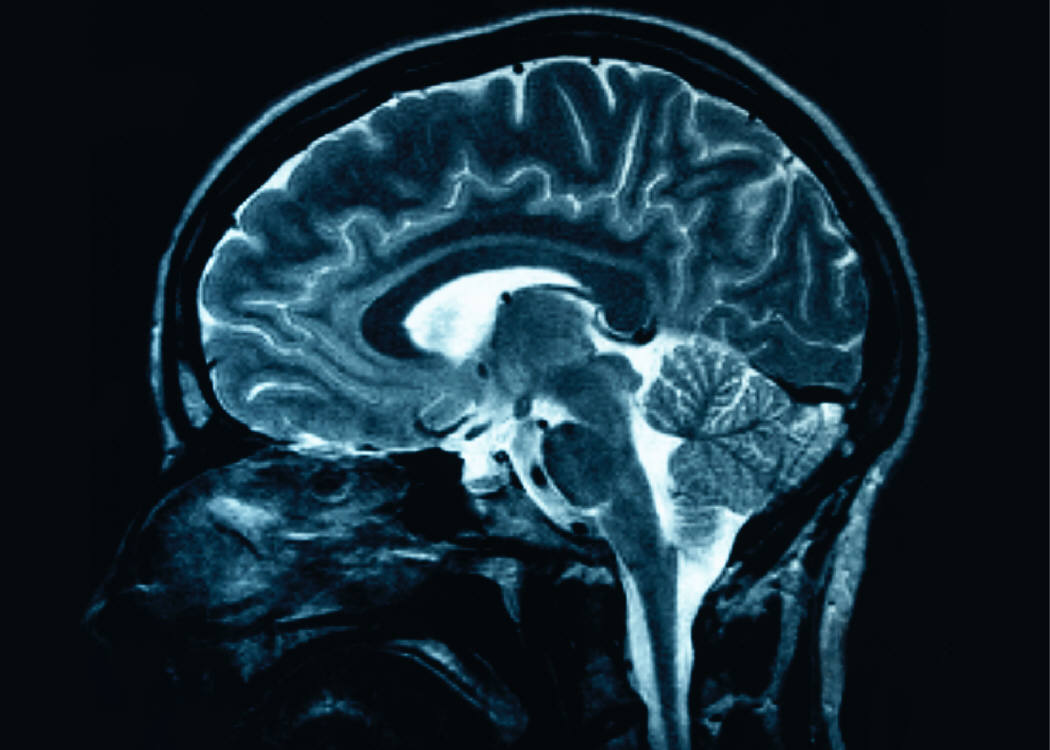

MRI is a high-resolution nonionizing (safe) tomographic technique used extensively for medical diagnostics and other related applications. It offers outstanding soft-tissue contrast that makes it superior to all other medical imaging techniques. MRI is based on creating two distinct energy states for the quantum spin of hydrogen nuclei in water molecules using a very strong static magnetic field B0. Applying an RF magnetic field B1 of the spin Larmor frequency f0 (about 42 MHz for each B0-Tesla) results in perturbing the distribution of the hydrogen nuclei (protons) between the two energy states. Upon restoring the thermodynamic equilibrium of this distribution, the spins radiate a highly coherent electromagnetic field at their Larmor frequency f0 that is used for a 3D-image construction.

MRI scanners with moderate B0 (up to 3T) excite and receive the RF B1-field by using coil arrangements operating more or less magnetostatically. They feature a predominant magnetic field and a very weak electric field with a nearly standing-wave field distribution (negligible spatial phase variation) and can be fully characterized using lumped elements and electric circuit theory.
Better image resolution and higher tissue contrast are, however, achieved by increasing the strength of the static magnetic field B0. Scanners with B0 > 4T (f0 > 160MHz) are categorized as “High Field”. RF structures (or simply RF coils) for excitation and reception of the corresponding B1-field have geometrical dimensions comparable to the operating wavelength. Therefore, they excite a significant electric field and exhibit propagation effects. The magnetostatic approximation is no longer valid for characterizing, modeling and optimizing such RF coils; they must be analyzed electromagnetically.

One of the objectives in the design of high-field RF coils is how to maintain the homogeneity of a circularly polarized B1-field (the so-called B1+-field) within a certain region of interest and, at the same time, minimize the associated electric field there. Homogeneity of the B1+-field is necessary for a uniform illumination of the image. Illumination in MRI can be defined as the strength of the spin transition from the lower to the upper energy state, which is attributed to the effect of the B1+-field in the excitation phase, where the RF coil acts as a transmitter. Minimizing the electric field, on the other hand, is necessary for increasing the signal-to-noise ratio (SNR) of the received MR signal radiated by the precessing spins during their back transition from the upper to the lower energy state. Lossy tissues interact with the electric field associated with the MR signal, giving rise to noise. A similar interaction takes place during the excitation phase and is responsible for heat development in the tissues. The latter is usually characterized by the tissue specific absorption rate (SAR).

In addition to a detailed presentation of the fundamentals of MRI, the course puts special emphases on a number of technological challenges. These include improving the homogeneity of the B1+-field for a better image quality, minimizing the electric field losses responsible for high SAR in the transmit operation and low SNR in the receive one, and making use of the concept of a phased array for focusing the RF field. These objectives can be achieved by using multi-channel operation and novel antenna structures.

Advanced RF Power Amplifier Techniques for Modern Wireless and Microwave Systems
Advanced RF Power Amplifier Techniques for Modern Wireless and Microwave Systems


The course begins with a comprehensive coverage of the physical and engineering fundamentals underlying the concept of Magnetic Resonance Imaging. This is followed by considering a typical Imager similar to those used in diagnostic Radiology at Clinics and Hospitals. The different constituents of such an Imager are described and explained in details. Different image attributes such as resolution, field of view, and contrast, as well as the image artifacts resulting from data discretization are discussed. The factors that affect the image quality in particular the image illumination and contrast as related to the homogeneity of the RF field are then considered. Special emphasis is put on high-field Imagers with B0≥7T, where the design of RF coils represents an engineering challenge. The course is finalized by considering the use of the concept of Phased Arrays, which is known in Antenna Theory, for improving the performance of RF coils.


The course is dedicated to Engineers, Scientists, and Academic Researchers, as well as Radiologists and Physicians involved in MRI diagnostics. A general background in Physics and Mathematics is required. Attending the course should help in understanding many of the image artifacts. This is necessary for, e.g., a better medical diagnostics. Engineering acquired skills include the capability of relating different system hardware components to image attributes. Economists with engineering background should benefit from the gained knowledge in optimizing operational costs of MR Imagers.

Advanced RF Power Amplifier Techniques for Modern Wireless and Microwave Systems

Due to ongoing Covid-19 pandemic, and the uncertain travel recommendations for Spring 2021, it is decided that this course will run Online during this period. The daily schedule will be adjusted to fit remote training.  Make a preliminary booking and we will keep you updated.

Day 1
Review of the Physics of Elementary Particles

  • The Hydrogen Atom
  • Classical-Mechanical Treatment
    - Newtonian Mechanics
    - Small Rotating Charged Spheres in a Static Magnetic Field
    - Equations of Motion and Precessing
    - Resonance Phenomenon
    - Stable and Unstable Equilibriums
    - Stored Energies
    - Emission and Absorption of Energies
  • Quantum-Mechanical Treatment
    - Quantum States
    - Quantum Transitions
  • Thermodynamic Equilibrium
    - Boltzmann’s Distribution
    - Temperature, Entropy, and Heat Capacity
  • Exercise

Day 2
Magnetic Fields

  • The Static Magnetic Field
    - Biot-Savart Law and Magnetic Field of DC Currents
    - Cylindrical and Toroidal Coils
    - Ohmic Losses, Dissipation, and Heat Generation
    - Super Conductors
  • Main Coil
    - Field Homogeneity
    - Improving Techniques
  • Gradient Coils
    - Field Linearity
    - Improving Techniques
  • The RF Magnetic Field
    - Electric and Magnetic Fields
    - Permittivity and Permeability
    - Loss Mechanisms
  • Field Polarization
    - Linearly Polarized Field
    - Elliptically Polarized Field
    - Circularly Polarized Field
  • RF Coils
    - TEM Coils
     - Birdcage Coils
    - Loop Coils
    - Field Homogeneity
  • Exercise

Day 3
Magnetic-Resonance Imager

  • Constituents
  • Slice Selection
    - Slice Thickness and Weighted Average
    - Exposure Time and Illumination Bandwidth
  • Phase Coding
  • Frequency Coding
  • Image Reconstruction
    - One-Dimensional Fourier Transform
    - Two-Dimensional Fourier Transform
  • Data Discretization
    - Resolution
    - Aliasing and Field of View
  • Noise and Image Artifacts
  • Speedup of Image Reconstruction
  • Exercise

Day 4
Radio-Frequency Transmitting and Receiving Structures

  • Resonance, Quality Factor, and Signal-to-Noise Ratio (SNR)
  • All-Body Coils
    - Birdcage Coils
    - TEM Coils
  • Head Coils
  • Surface Coils
  • Coupled-Resonator Structures
    - Resonant Electric Circuits
    - Coupling and Bandwidth
  • Homogeneity of the RF Field
  • Exercise

Day 5

  • Phased Array in Antenna Theory
  • Phased Arrays as RF Coils
  • Butler Matrix
  • Segmentation and Parallel Data Acquisition
  • Exercise


Prof. Dr. Omar has published a text that is a recommended reference.  The reference is not required for this course.

Electromagnetic Scattering and Material Characterization (Artech House, 2010) ISBN: 9781596932166
